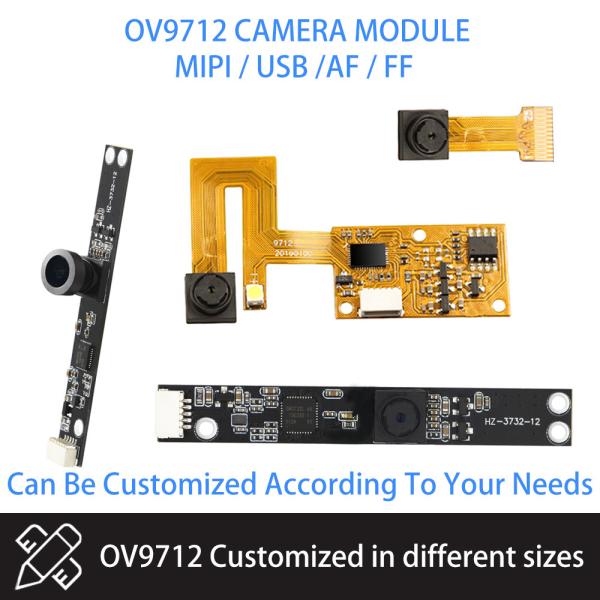

OEM 1MP OV9712 USB Laptop Camera Module FF 720P HD Infrared Night Vision

OEM Low Light 1mp 720p 30fps OmniVision Ov9712 HD CMOS Sensor Camera Module Fixed Focus Mini USB UVC Scanning Camera Module

Product Description

High-resolution Camera Module

• The OV9712 is a high-performance, low-power 1/4-inch CMOS image sensor designed for HD video applications. The sensor module supports 1280×720 resolution (720p) @ 30fps and is equipped with the Omnivision OV9712 CMOS image sensor, which has excellent and stable image quality. The OV9712 low-light camera module has a low illumination and low-light sensitivity of 3.7 V/lux-second, which can be clearly seen even in low-light or dark environments.

Low power Camera Module

• The OV9712 USB camera module uses advanced 3.0μm pixel technology to provide excellent image quality even in low-light environments, and has a high dynamic range (HDR) function to effectively suppress backlight overexposure. With its high cost-effectiveness, low power consumption (operating power consumption <120mW) and compact packaging (bare die or COB packaging optional), the OV9712 is an ideal choice for compact HD camera equipment.

OV9712 Wide-angle lens Camera Functions and Features

■High sensitivity for low light operation
■Supports horizontal and vertical subsampling
■Ultra-low power consumption and low cost
■Automatic image control functions:
-Automatic exposure control (AEC)
-Automatic gain control (AGC)
-Automatic white balance (AWB)
-Automatic band filter (ABF)
-Automatic black level calibration (ABLC)
■Supports black sunlight elimination
■Supports internal and external frame cancellation
■Standard serial camera control bus (SCCB) interface
■Programmable control:
-Frame rate
-AEC/AGC 16-zone size/position/weight control
-Mirror and flip
-Crop and window
■Image quality control:
-Lens correction
-Defective pixel elimination
■Digital video port (DVP) parallel output interface
■Embedded one-time programmable (OTP) memory
■On-chip phase-locked loop (PLL)
■Built-in 1.5V core regulator
■Output supports raw RGB Supported image sizes:
-WXGA (1Z80x800)
-HD 720p(1280x720)
-VGA(640x480)

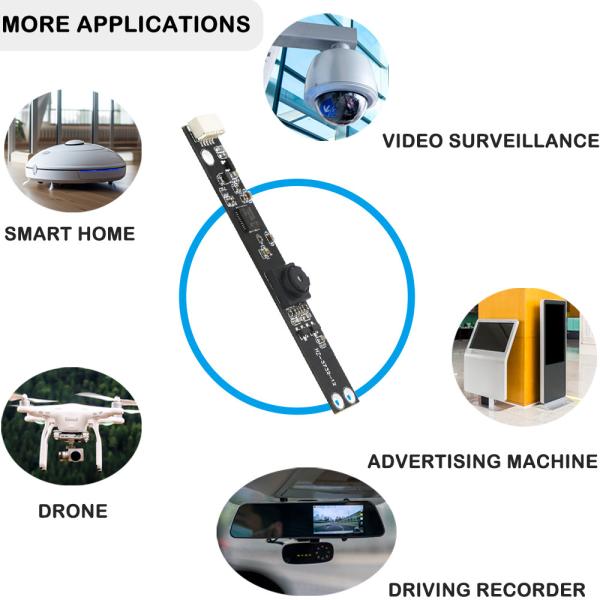

CMOS Camera Module Applications

Security monitoring, driving recorders, smart home devices, machine vision inspection, sports cameras, portable cameras, drone cameras, automation equipment, barcode/QR code scanning, industrial vision, reversing imaging systems, medical equipment, etc.

Specifications:720P HD Mini Camera Module

OV9712 Laptop Camera Module

1MP Laptop Camera Module

OV9712 Night Vision Camera Module

OEM 1MP OV9712 USB Laptop Camera Module FF 720P HD Infrared Night Vision Images
