HZ OEM Omnivision 1/6'' 2MP AF Ov 2740 Endoscope Camera Module 1080p Fixedfocus CMOS Image Sensor Mini Camera Module USB Factory
Product Description

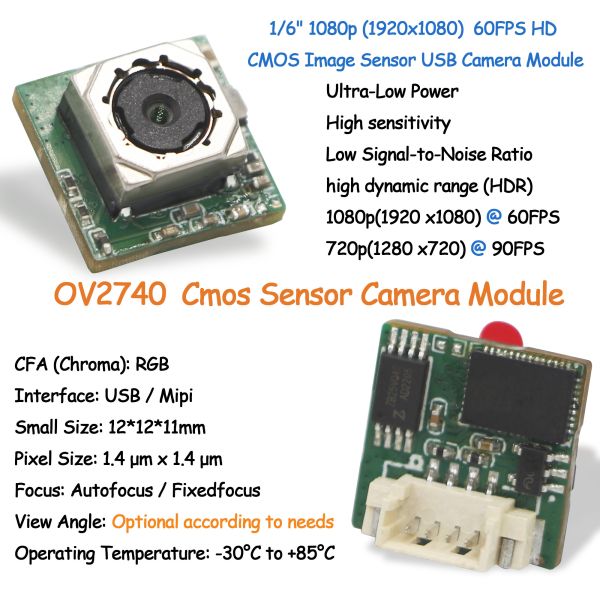

OV2740 2MP USB Camera Module
OmniVision's OV2740 USB camera module is an ultra-low-power full high-definition (FHD) image sensor. The OV2740 module consumes less than 90 milliwatts when recording 1080p HD video at 60 frames per second (fps), and can output clear and detailed images even in low-light environments. It is the lowest power 1080p/60 image sensor on the market.
endoscopic cameras
The OV2740 CMOS image sensor uses 1.4-micron pixels, a signal-to-noise ratio of less than 50 lux, and improved full well capacity (FWC) and sensitivity. The sensor can record best-in-class 1080p HD video at 60 fps and 720p HD video at 90 fps, and uses interlaced high dynamic range (HDR) technology to minimize motion artifacts, capturing clear and sharp video even in complex lighting conditions.
industrial cameras
The OV2740 camera module is the only 1080p HD image sensor with Light Sensing Mode (LSM) and Ultra Low Power Mode (ULPM), enabling advanced features such as motion detection or gesture control. In addition, the sensor supports frame synchronization and stereo, and can support a variety of depth perception applications. The OV2740 module is compact, measuring only 5.5 x 5.5 x 3 mm.
OmniVision IMX2740 Mini Camera Module Functions and Features
Ultra-low power design: By optimizing circuit structure and power management, power consumption is greatly reduced while maintaining high performance
High frame rate HD quality: supports smooth video output at 60fps at 1920×1080 full HD resolution, up to 90fps in 720P mode
Low light performance: OV2740 uses advanced back-illuminated (BSI) pixel technology to significantly improve sensitivity
Compact design: uses 1/6-inch optical format, 1.4µm pixel size, and is compact
Wide compatibility: supports USB 2.0 OTG protocol and UVC protocol
CMOS Camera Module Applications
Smartphone cameras, car cameras, security monitoring, medical equipment, AR/VR equipment, drones/sports cameras, industrial inspection, Internet of Things (IoT) equipment, etc.
Specifications:2MP AF Ov 2740 Endoscope Camera
| Module No. | HZ-OV2740 S2.0 |
| Shutter type | Rolling Shutter |
| Module Size | (OEM&ODM) |
| Temperature (Operation) | -30°C to +85°C |
| Stable image Junction temperature | 0℃ to +60 °C |
| Object distance | 5CM~∞ |
| PCB printing ink | Green (Customizable color) |
| interface | USB 2.0 0TG |
| supply voltage | DC5V士5% |
| Assembly technique | SMT(ROSH) |
| CMOS Sensor | OV2740 CMOS Sensor |
| Optical format | 1/6" |
| Color filter array | RGB |
| Active Pixels | 1920H x 1080V |
| Pixel | 2MP |
| Pixel size | 1.4µm x 1.4 µm |
| USB Cable | Default with 1 meter wire The company has 1 meter 2 meters 3 meters wire (support a variety of customized interface line) |
| Maximum Frame Rate | Full:1920*1080@60fps
720P @90fps |
| Camera Angle | Optional lens |
| support system | Microsoft windows 2000 sp2/XP Vista/windows7/windows8/windows10 Mac-OSx10.4.8 or above (conforming to UVC protocol) Linux, Android, etc. (conforming to UVC protocol) |
| Support drive - free protocol | USB Video Class (UVC ) |
| Support OTG protocol | USB 2.0 0TG |
| Adjustable parameter | Camera attribute |
